Diamond Series

Diamond Series LED GROW LIGHT
Diamond Series Learm More

Diamond Series LED Grow Lights Advantage: 1. 3W led chip. 2. 60 90 120 degree lenses. 3. Double roller and low noise, special cover design in four corner. 4. 20pcs can be connected to use by one input plug 5. Aluminum cooling system, Unique heat dissipation, optics, structure, power design, ...

Diamond Series

  1. ZS001

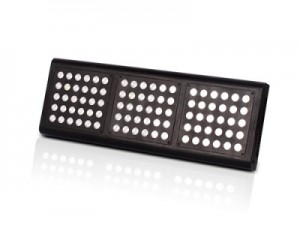

  2. ZS002

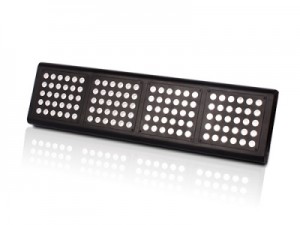

  3. ZS003

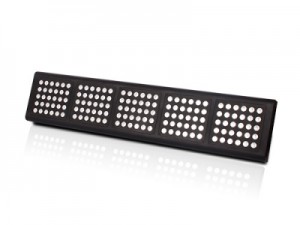

  4. ZS004

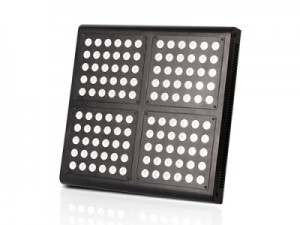

  5. ZS005

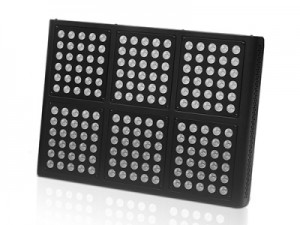

  6. ZS006

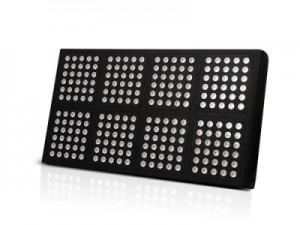

  7. ZS007

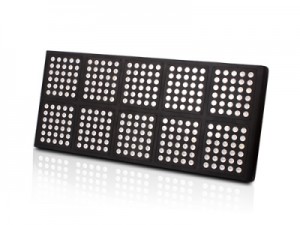

  8. ZS008

Dimensions: 380X200X65mm

Weight: 3.4kg/pcs
Actual Wattage: 120w±10%
Lenses: 60/90/120 degree
Total Diodes: 60pcs
Diode Wattage: 3w
Input Voltage: 100-240V AC Power Input
Work Frequency: 50/60 Hz
Amperage: 600mA
Package: 4pcs/box
Standard Configuration: LED Light x1, 1.5m Power line x1,    Hanging Kit x 1

Dimensions: 570x200x65mm

Weight: 4.8kg/pcs
Actual Wattage: 180w±10%
Lenses: 60/90/120 degree
Total Diodes: 90pcs
Diode Wattage: 3w
Input Voltage: 100-240V AC Power Input
Work Frequency: 50/60 Hz
Amperage: 600mA
Package: 4pcs/box
Standard Configuration: LED Light x1,     1.5m Power line x1,    Hanging Kit x 1

Dimensions: 760x200x65mm

Weight: 6.3kg/pcs
Actual Wattage: 240w±10%
Lenses: 60/90/120 degree
Total Diodes: 120pcs
Diode Wattage: 3w
Input Voltage: 100-240V AC Power Input
Work Frequency: 50/60 Hz
Amperage: 600mA
Package: 2pcs/box
Standard Configuration: LED Light x1,     1.5m Power line x1,    Hanging Kit x 2

Dimensions: 950x200x65mm

Weight: 7.6kg/pcs
Actual Wattage: 300w±10%
Lenses: 60/90/120 degree
Total Diodes: 150pcs
Diode Wattage: 3w
Input Voltage: 100-240V AC Power Input
Work Frequency: 50/60 Hz
Amperage: 600mA
Package: 2pcs/box
Standard Configuration: LED Light x1, 1.5m Power line x1,  Hanging Kit x 2

Dimensions: 280x365x65mm

Weight: 6.2kg/pcs
Actual Wattage: 240w±10%
Lenses: 60/90/120 degree
Total Diodes: 120pcs
Diode Wattage: 3w
Input Voltage: 100-240V AC Power Input
Work Frequency: 50/60 Hz
Amperage: 600mA
Package: 4pcs/box
Standard Configuration: LED Light x1, 1.5m Power line x1,  Hanging Kit x 1

Dimensions: 530x380x65mm

Weight: 8.2kg/pcs
Actual Wattage: 360w±10%
Lenses: 60/90/120 degree
Total Diodes: 180pcs
Diode Wattage: 3w
Input Voltage: 100-240V AC Power Input
Work Frequency: 50/60 Hz
Amperage: 600mA
Package: 2pcs/box
Standard Configuration: LED Light x1,     1.5m Power line x1,    Hanging Kit x 2

Dimensions: 695x380x65mm

Weight: 10.4kg/pcs
Actual Wattage: 480w±10%
Lenses: 60/90/120 degree
Total Diodes: 240pcs
Diode Wattage: 3w
Input Voltage: 100-240V AC Power Input
Work Frequency: 50/60 Hz
Amperage: 600mA
Package: 2pcs/box
Standard Configuration: LED Light x1,     1.5m Power line x1,    Hanging Kit x 2

Dimensions: 860x380x65mm

Weight: 12.5kg/pcs
Actual Wattage: 600w±10%
Lenses: 60/90/120 degree
Total Diodes: 300pcs
Diode Wattage: 3w
Input Voltage: 100-240V AC Power Input
Work Frequency: 50/60 Hz
Amperage: 600mA
Package: 2pcs/box
Standard Configuration: LED Light x1,     1.5m Power line x1,    Hanging Kit x 2

Product Detail

APPLICATION

CAPABILITIES

OUR ADVANTAGES

Product Tags

Diamond Series LED Grow Lights Advantage:
1. 3W led chip.
2. 60 90 120 degree lenses.
3. Double roller and low noise, special cover design in four corner.
4. 20pcs can be connected to use by one input plug
5. Aluminum cooling system, Unique heat dissipation, optics, structure, power design, pure aluminum, led temperature below 40°.
6 . 20% PAR and design idea higher than industry same level which we use original import chips, special lens deisgn, driver efficiency above 90%.
7 . Moudle design, convenient maintenance, automatic production, 3 years warranty.
8. Best for growing, flowering, fruiting etc. Full spectrum(12 band) recommended.
9. CE RoHS certificaiton, reaching UL standard

Why does Diamond Series LED plant lighting stimulate hydroponic plant growth and flowering?
1. Original import chip guarantee that lifespan and PAR, ideal for promoting photosynthesis.
2. Special lenses design, magnify that chip effect, 60 90 120 degree lenses, providing more footprint than HPS light.
3. Fully customizable spectrum, 12 band spectrum for customer choice. Red are mainly 630nm 660nm, 660nm spectrum is better than 630nm spectrum for plant flowering. Desipte that 660nm cost is higher than 630nm, we insist that product quality is best and take more 660nm for customer.
4. Take Double roller and low noise, lower noise, special appearance deisgn with certain radian.
5. Auminum heat dissipation grow led lighting, lower that temperature, extend that lifespan, reaching that UL standard.

LED Grow Lights Application:
Ideal for all phases of plant growth and flowering, works well with water solution culture and soil culture and hydroponics systems. Can be used in home garden, farm, flower growth, bonsai, flower exhibition, hydroponics cultivation, greenhouse cultivation, rose growth, water soluble breeding, pipeline cultivation, seeding or growing stem, blooming fruiting breeding plant, football grass plant, sowing and so on.

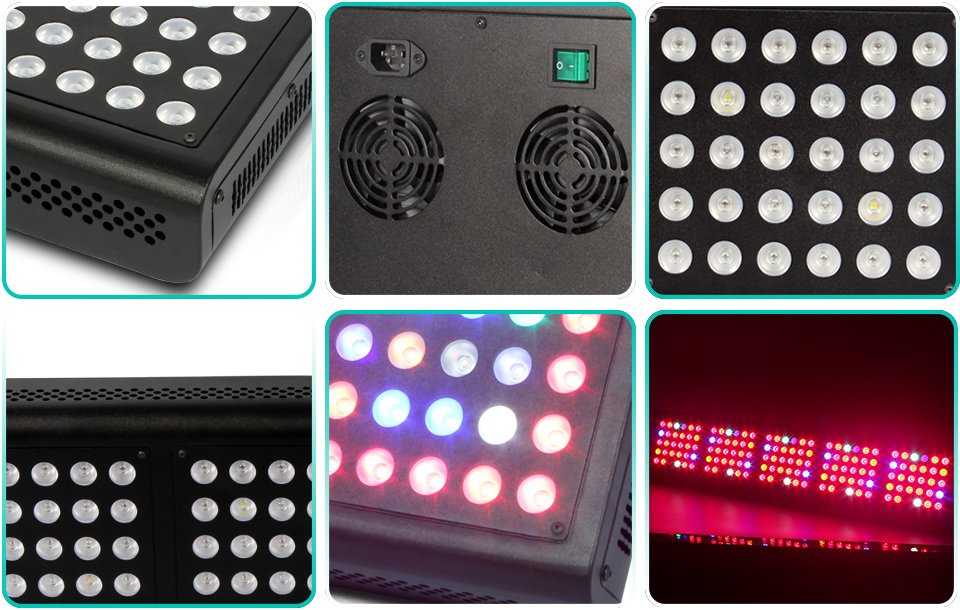

ZS-xijie
